300M Sway Bar Shaft
The sway bar axle shaft is at the heart of every sway bar solution, and we ask an awful lot out of them in rock crawling and racing alike. While matching stability and a high angle of twist is no easy feat, with over two decades of axle shaft design and manufacturing expertise, we are excited to introduce the industry's strongest sway bar axle shaft. Coupled with our Sway Bar Arms, our complete Sway Bar Shaft solution is hands down the best yet. |
|
|
$949.00
- Availability:
- Made to Order
- Model No:
- SWB35M3
Fewer parts are always welcome in the field, whether trail riding or racing. Our unique approach to sway bar assembly takes KISS (keep it simple, stupid) to the next level. One bolt not only clamps the Sway Bar Arm, but it also locks the Sway Bar Shaft in place with the specially keyed design of the sway bar shaft. This locking design requires no other bolts or cover plates to keep your arms in place. It's as simple as it gets.
We're also introducing one more industry first: The splines of our Sway Bar Shafts and Sway Bar Arms are fully phased with each other. Out of the box, assembling your complete Sway Bar will result in perfectly aligned arms every time. Say goodbye to misaligned arms once and for all.

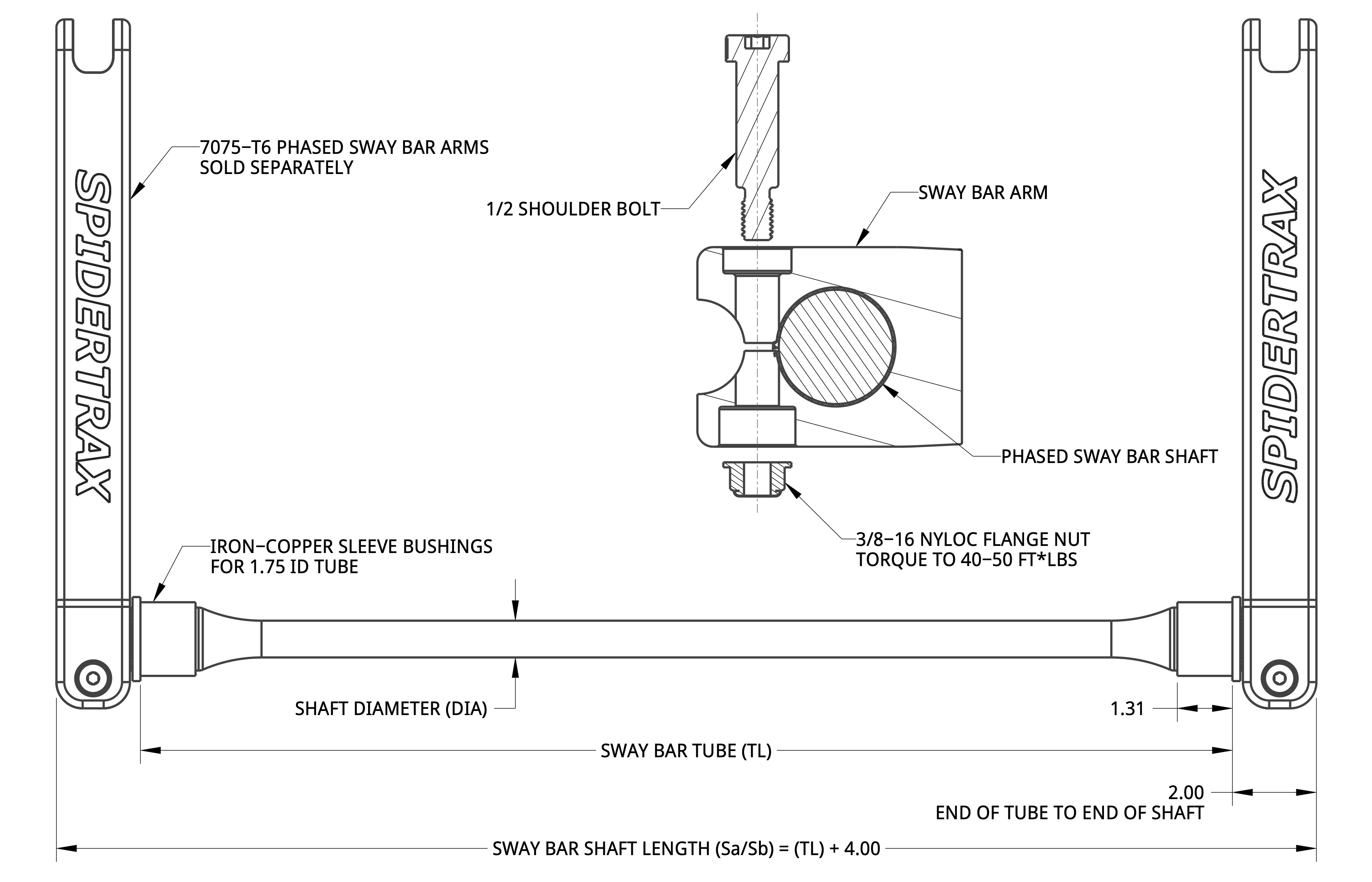

This Spidertrax Sway Bar Shaft is designed to be 35-40" in overall length, with options for shaft diameter. Please refer to our technical drawing below for help with determining your proper Sway Bar Shaft length. All Sway Bar Shafts come complete with one phased 300M shaft and two high load iron-copper bushings. Lead times vary, for an accurate ship date prior to ordering please call or email. Because Sway Bar Shafts are custom made, payment is taken in full at the time of sale and is non-refundable.
We're also introducing one more industry first: The splines of our Sway Bar Shafts and Sway Bar Arms are fully phased with each other. Out of the box, assembling your complete Sway Bar will result in perfectly aligned arms every time. Say goodbye to misaligned arms once and for all.
This Spidertrax Sway Bar Shaft is designed to be 35-40" in overall length, with options for shaft diameter. Please refer to our technical drawing below for help with determining your proper Sway Bar Shaft length. All Sway Bar Shafts come complete with one phased 300M shaft and two high load iron-copper bushings. Lead times vary, for an accurate ship date prior to ordering please call or email. Because Sway Bar Shafts are custom made, payment is taken in full at the time of sale and is non-refundable.
Microscopic perfection.We follow the strictest 300M AMS aerospace standards, with heating & quenching done in a vacuum chamber. The end result is near-zero decarburization from core to surface. This microscopic hardness purity blows away the competition, providing superior strength, longevity, and fatigue resistance.
|

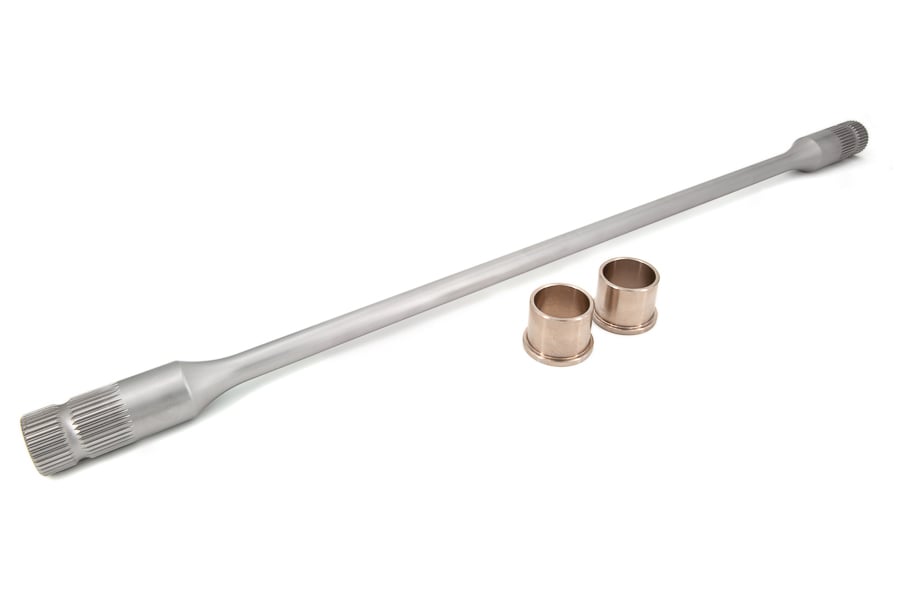

Iron meets copper.Included with all Sway Bar Shafts are two high-load sleeve bushings. Crafted from a special blend of iron & copper, this unique material is stronger and more shock resistant than Delrin & nylon. At the same time, it provides the equivalent lubrication as oil-embedded sleeves. Nothing wrong with the best of both worlds.
|

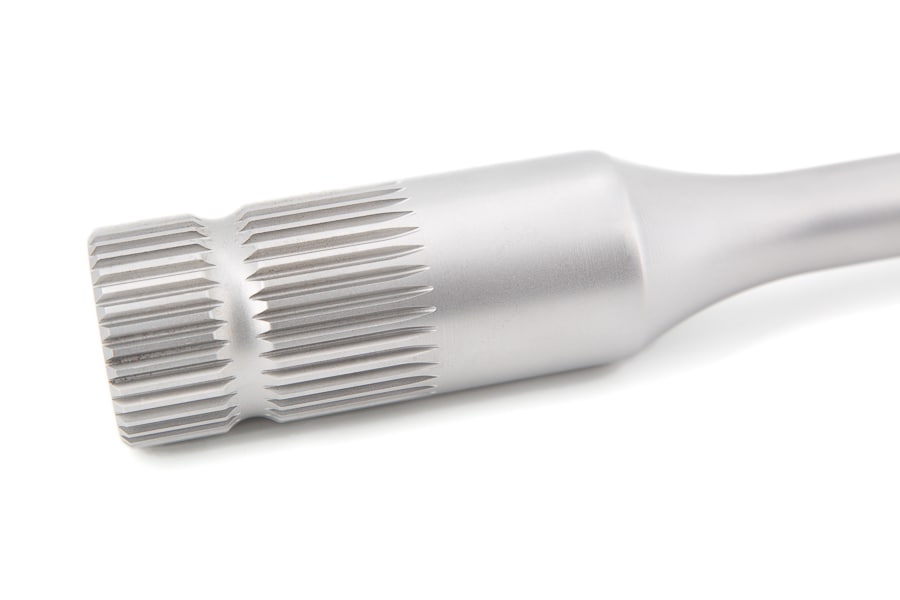

Phased splines.Our Sway Bar Shaft splines are phased from end to end, meaning the splines are perfectly in-line. This unique, industry-first, manufacturing process ensures that, when assembled, our Sway Bar Shaft and phased Sway Bar Arms are perfectly straight. Say goodbye to misaligned sway bar arms once and for all.
|

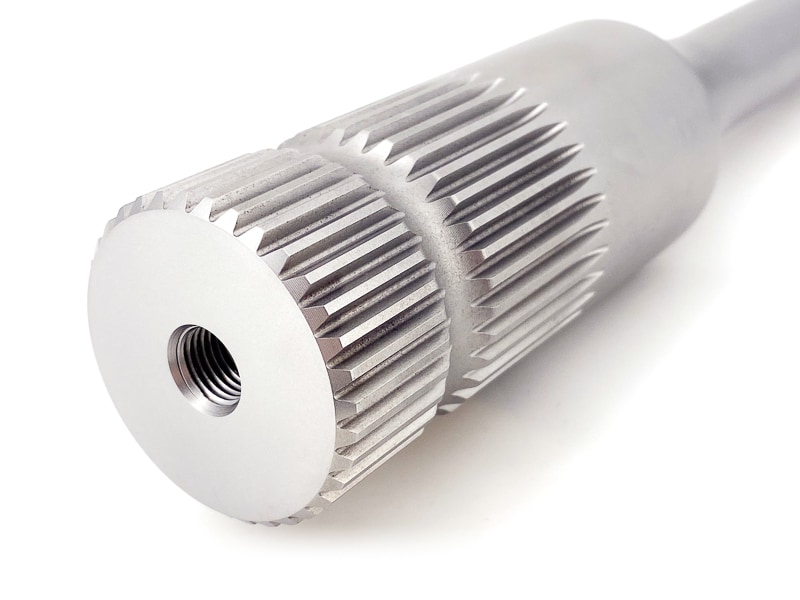

Interlocking simplicity.Thinking outside the box as always, we set out to create a unique interlocking sway bar shaft & arm design that uses fewer parts and is stronger than anything on the market. One bolt not only tightens the splines but also interlocks with our Sway Bar Shaft. Simple, strong, easy to assemble, and looks damn good.
|
