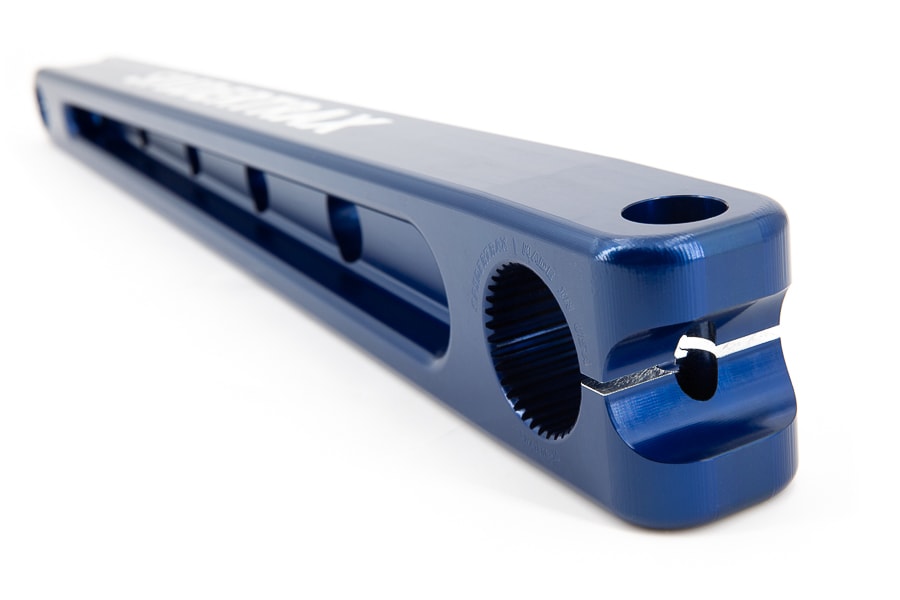

7075-T6 Sway Bar Arms
12 in. Arm (Pair)

Reducing a race vehicle's body roll is fundamental for both crawling and racing performance. While existing sway bar solutions attempt to solve this problem, the hodge-podge of mismatched parts, poor materials and workmanship, and overly complicated designs leave less to be desired. So, we decided it was time to do something about it.

Spidertrax Sway Bar Arms are designed ground-up as the end-all sway bar arm solution. We start with a single piece of domestic grade 7075-T6 aluminum. Out of the gate, we're 64% lighter -AND- 36% stronger than steel. Comparing our arms with the 6061-T6 aluminum alternatives, we're 83% stronger. These are massive improvements, and we haven't even made chips yet!

$699.00
MSRP:
$699.00
Availability:
Only 0 in stock.
Availability:
Made to Order
Ship Date:
Model No:
SWA012

From there, we manufacture each arm length as a one-piece design. No add-on tabs, no cutting, and no modifications needed. Pick the arm length you need, and that's that. Taking advantage of our custom in-house 4th axis fixturing, we're able to manufacture each arm with minimal setups, ensuring the highest degree of tolerance from feature to feature.

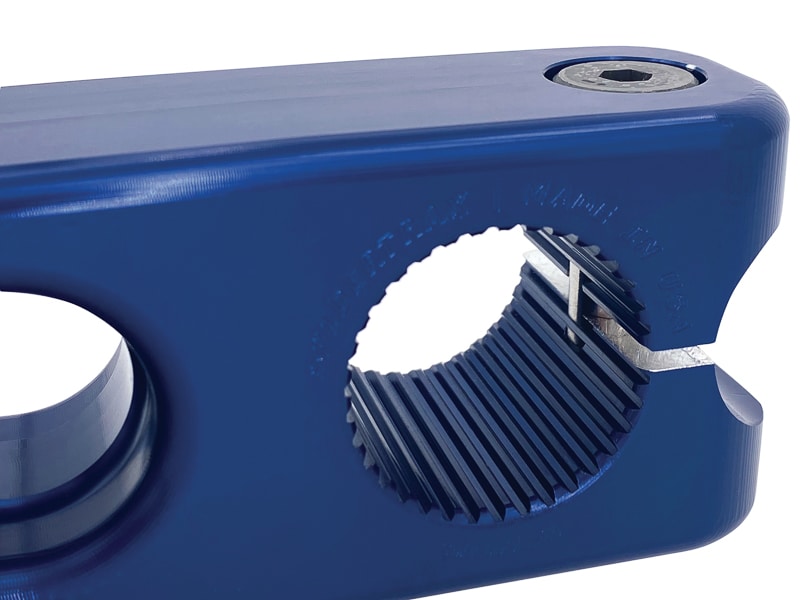

Simplicity in design is bliss, and when it comes time to assemble your Sway Bar Arms and Sway Bar Shaft, you'll see what we mean. No cover bolts, no external plates, and no sloppy spline fitments. Simply tighten the included 1/2" shoulder bolt & flanged nut (the same sized bolt & nut used to assemble the rod end), and you're all set. Your Sway Bar Arms and Sway Bar Shaft will stay solidly in place. Not only the simplest assembly in class but the strongest as well.

Once assembled, you'll notice one of our most unique features if you've run other sway bar arms in the past. Our Sway Bar Arms and shafts are phased with each other. Assemble your arms and shafts, and your Sway Bar Arms will be perfectly parallel. Nothing is more frustrating than spending what feels like a lifetime building the ultimate rig, only to have your sway bar arms indexed from each other when finished. It's wrong, looks cheap, and is entirely unnecessary.

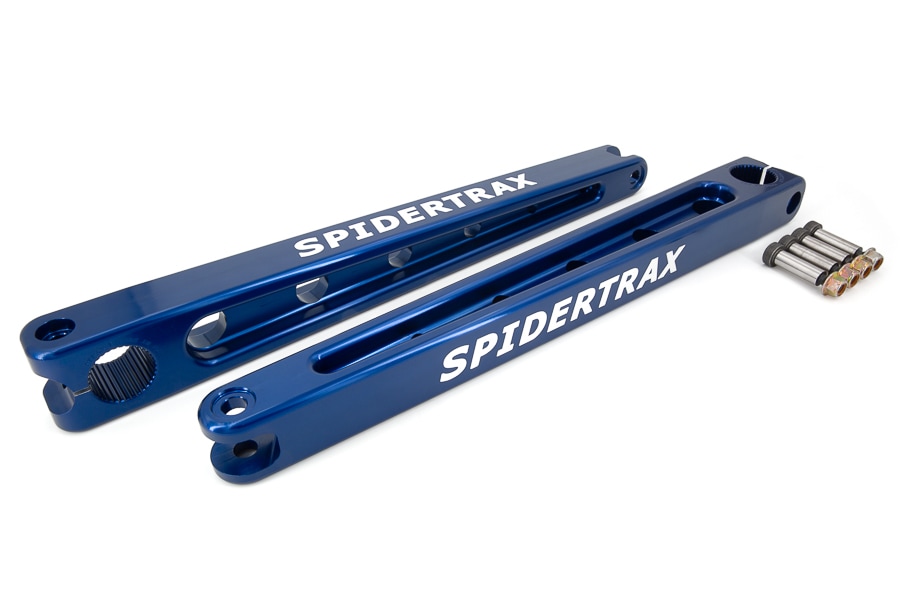

All Spidertrax 7075-T6 Sway Bar Arms come complete with a pair of phased Sway Bar Arms, four shoulder bolts & flanged nuts. Rod ends and 35 spline Sway Bar Shaft are sold separately.


KISS principle.

Keep it simple, stupid (KISS) is a fundamental design philosophy in everything we do at Spidertrax. Our unique single bolt integrated locking & pinch design makes assembly strong and simple, with far fewer parts.
KISS principle.

Strong as steel.

Balancing strength and weight is a tricky thing. Cutting no corners on quality, we're exclusively using aircraft alloy 7075-T6. Coupling the lightweight of aluminum with the strength of steel makes for an industry-leading design.
Strong as steel.

A perfect fit.

Assembling sway bar arms and shafts only to end up with misaligned arms is the absolute worst. Our arms and shafts are phased with each other, so our Sway Bar Arms assemble perfectly parallel, right out of the box.
A perfect fit.

Billet construction.

Every angle in this one-piece design is optimized for strength, weight, and function. Setups are reduced using our proprietary 4th axis fixturing, so tolerances are held to the highest levels. It also looks amazing, which doesn't hurt.
Billet construction.
